Custom Kynar® Lined Static Mixer

Custom Static Mixer

Due to its enhanced chemical resistance, high-temperature capability, and low permeability, custom Kynar static mixers constructed of Kynar® PVDF  are a compelling choice for demanding chemical applications. Kynar lined mixers are offered in Kynar-lined flanged carbon steel (standard) or solid schedule 80 Kynar styles. Each style comes with solid Kynar mixing elements welded to the interior of the Kynar liner or pipe wall. Contact us today to learn more about our Kynar lined mixers.

REQUEST A QUOTE

In-Stock Alternate

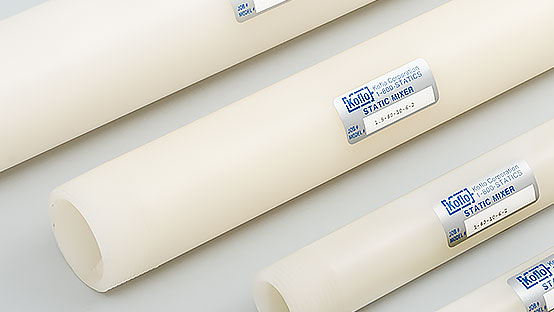

For threaded systems, Koflo offers in-stock threaded Kynar® static mixers. Click below to learn more.

Typical Applications

  • pH control
  • Aggressive chemical mixing
  • Thermal homogeneity

Technical

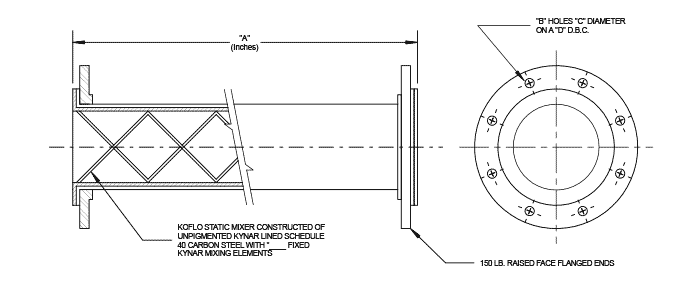

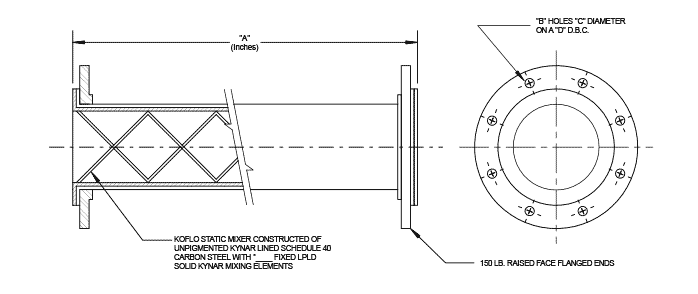

Kynar-Lined Housing

  • Diameter: 1" - 16"
  • Housing: Schedule 40 carbon steel (standard), 304 / 304L SS,  316 / 316L SS
  • Liner: Flared-face Kynar® PVDF (1" - 8"), Roto-molded (3" - 16")
  • Elements: Solid Kynar® PVDF

Solid Kynar Housing

  • Diameter: 1/2" - 4"
  • Housing: Schedule 80 Kynar® PVDF
  • Elements: Solid Kynar® PVDF

Other Links

Available Options

Element Design

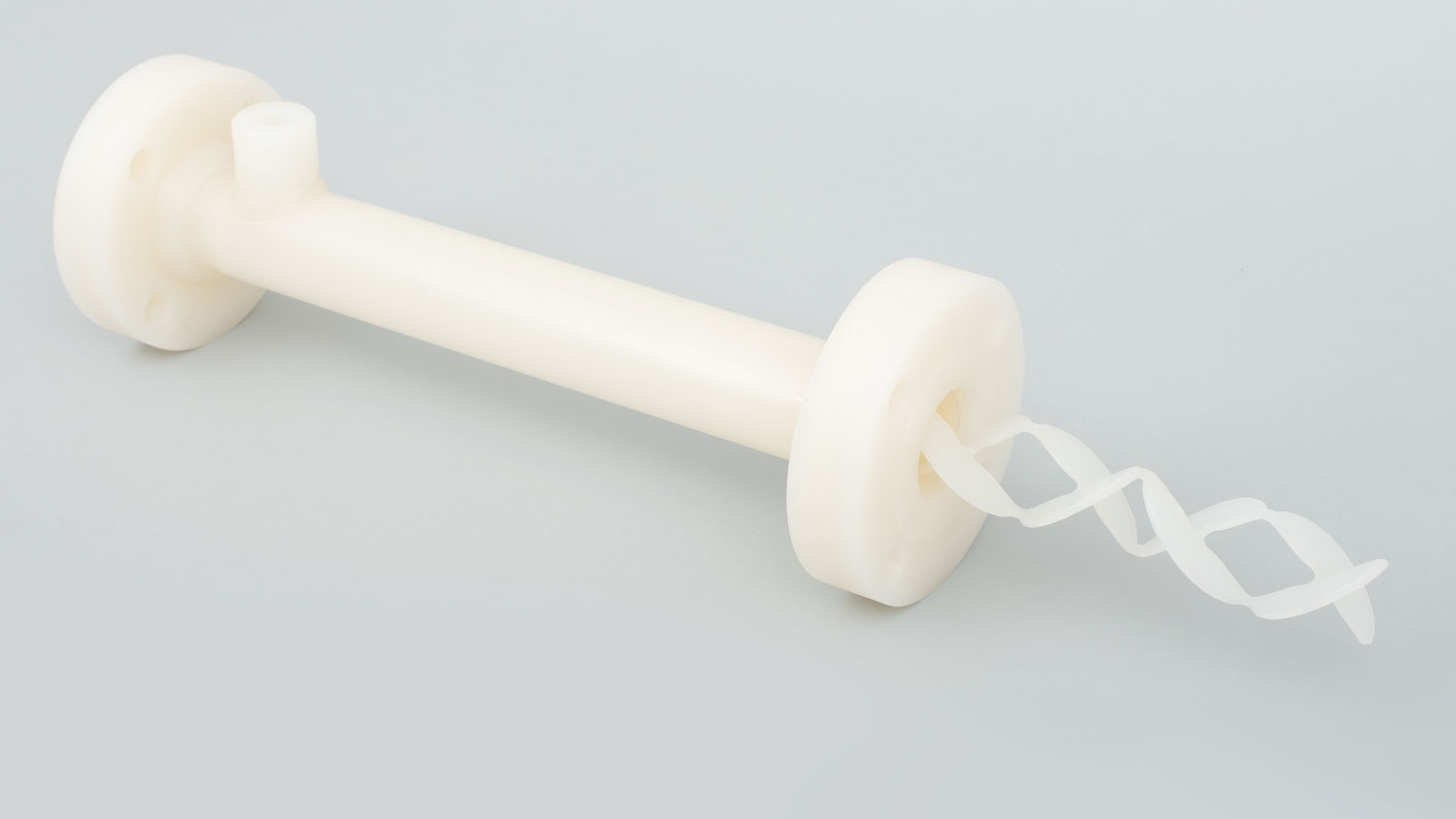

Solid Kynar® static mixer with Koflo Blade™ mixing elements

Koflo Blade™ Mixing Elements

The patented Koflo Blade™ style element provides Koflo's best-in-class efficient mixing ability for turbulent flow applications combined with minimal pressure (head) loss. Koflo's Blade™ elements are available in multiple configurations for demanding applications

  • Standard Design - Recommended for most applications. Koflo's standard configuration provides the best combination of mixing ability, pressure loss, and overall length.
  • Low Pressure Loss Design - For limited head pressure applications where lower pressure loss is a critical requirement. Lower pressure loss than standard design elements.
  • Ultra Low Pressure Loss Design - For critically limited head applications where lower pressure loss is paramount to the system design.
  • High-Mix Design - For space-constrained applications that demand Koflo's best-in-class mixing in a shorter overall length

Please note that all solid Kynar elements are welded to the interior of the housing. Elements are shown above for informational purposes only.

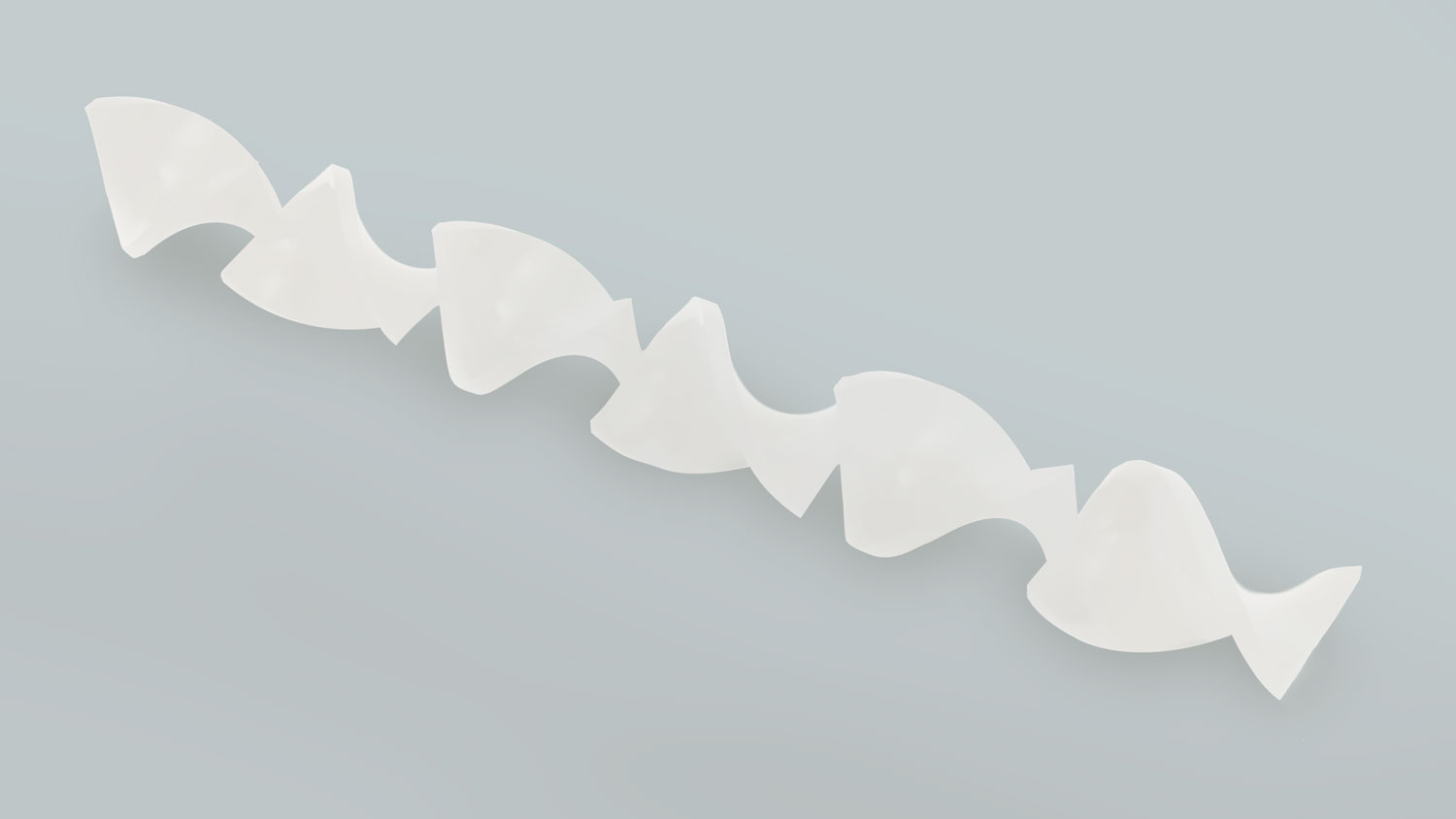

Kynar® helical mixing elements

Helical mixing elements

Koflo's helical-style static mixer elements are designed to provide optimal mixing for laminar / plug flow applications. Benefits of helical-style mixing elements include:

  • Optimal mixing for laminar or high-viscosity flows
  • Low pressure loss design
  • Ensure homogeneous mixing across large flow ranges

Please note that Koflo does not sell elements without housings. Elements are shown for informational purposes only.

End Connections

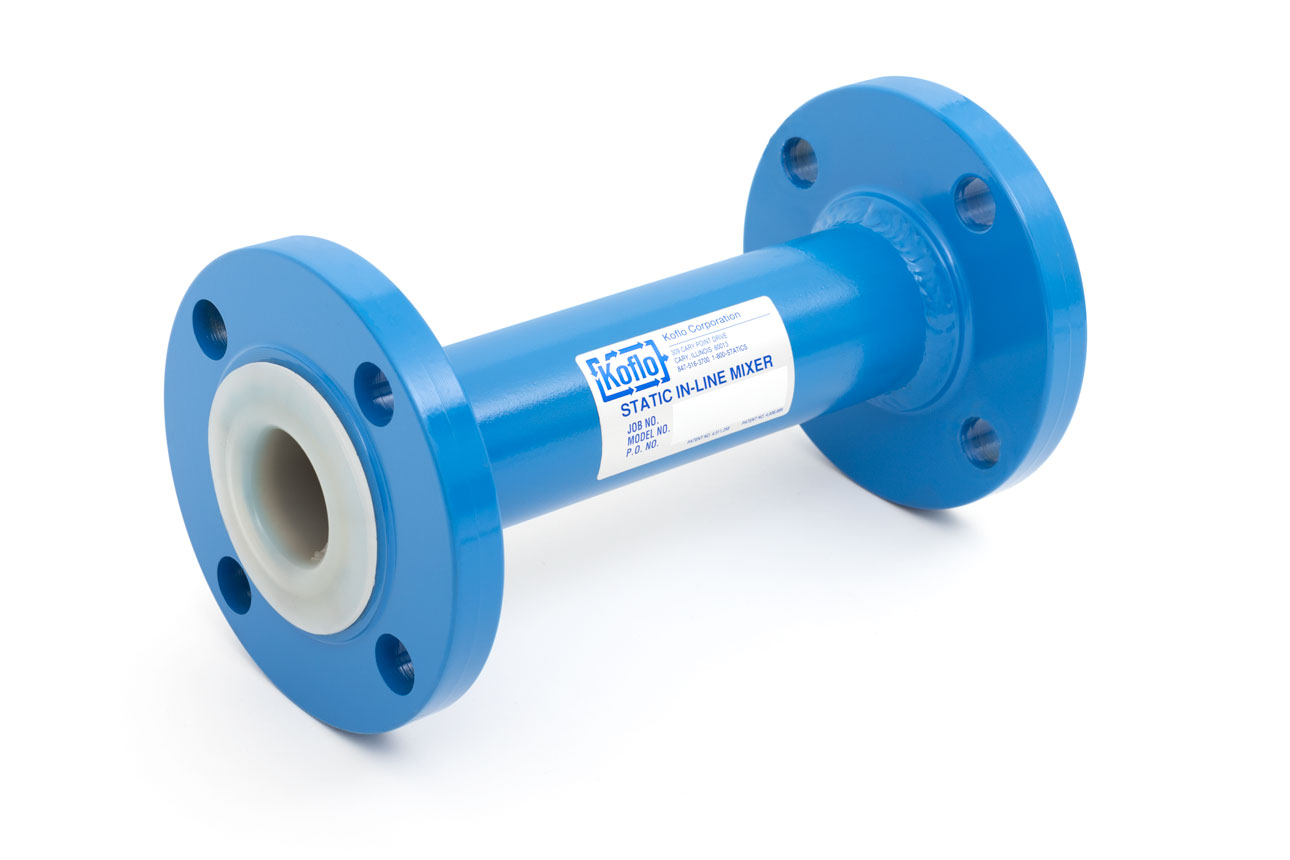

Kynar®-lined static mixer with flanged ends

Flanged Ends

Flanged end connections provide easy assembly and disassembly in piping systems. For Kynar® static mixers with flanged end configurations, Koflo offers Class 150 raised face flanged ends as standard.

Alternate Configurations

  • Kynar Lined Flanged Ends

    Kynar-Lined Flanged Ends — Standard

    Koflo standard configuration

  • Solid Kynar Flanged Ends

    Solid Kynar Flanged Ends

    For Solid Kynar mixers, machined from a solid billet of unpigmented Kynar

Alternate Images

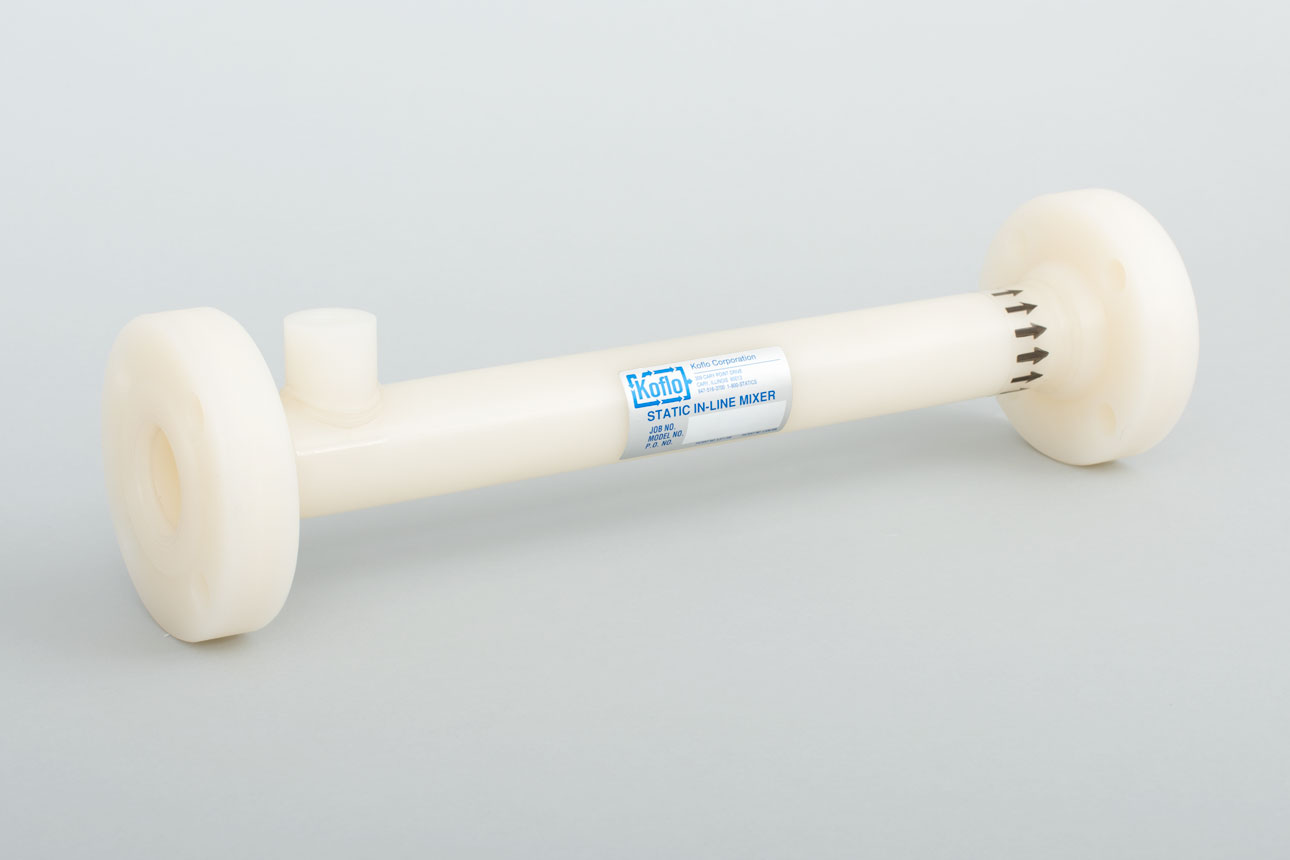

Solid Kynar static mixer with flanged ends

Technical

All bolt hole configurations conform to ASME B16.5 standards.

Other flange standards, classes, or configurations (ie. DIN) available by request.

ASME B16.5 Class 150 Flange Dimensions. All sizes in inches.

Nominal Pipe Size Diameter of Bolt Circle Bolt Hole Diameter Bolt Diameter Number of Bolts
1/2 2-3/8 5/8 1/2 4
3/4 2-3/4 5/8 1/2 4
1 3-1/8 5/8 1/2 4
1-1/4 3-1/2 5/8 1/2 4
1-1/2 3-7/8 5/8 1/2 4
2 4-3/4 3/4 5/8 4
3 6 3/4 5/8 4
4 7-1/2 3/4 5/8 8
6 9-1/2 7/8 3/4 8
8 11-3/4 7/8 3/4 8
10 14-1/4 1 7/8 12
12 17 1 7/8 12
14 18-3/4 1-1/8 1 12
16 21-1/4 1-1/8 1 16
18 22-3/4 1-1/4 1-1/8 16
20 25 1-1/4 1-1/8 20
24 29-1/2 1-3/8 1-1/4 20
Solid Kynar® static mixer with male NPT threaded ends

Threaded Ends

For threaded pipeline systems, Koflo offers solid Kynar® mixers with male NPT threaded end connections.

Standards
  • Threads: ANSI B1.20.1 (NPT)

Other Options

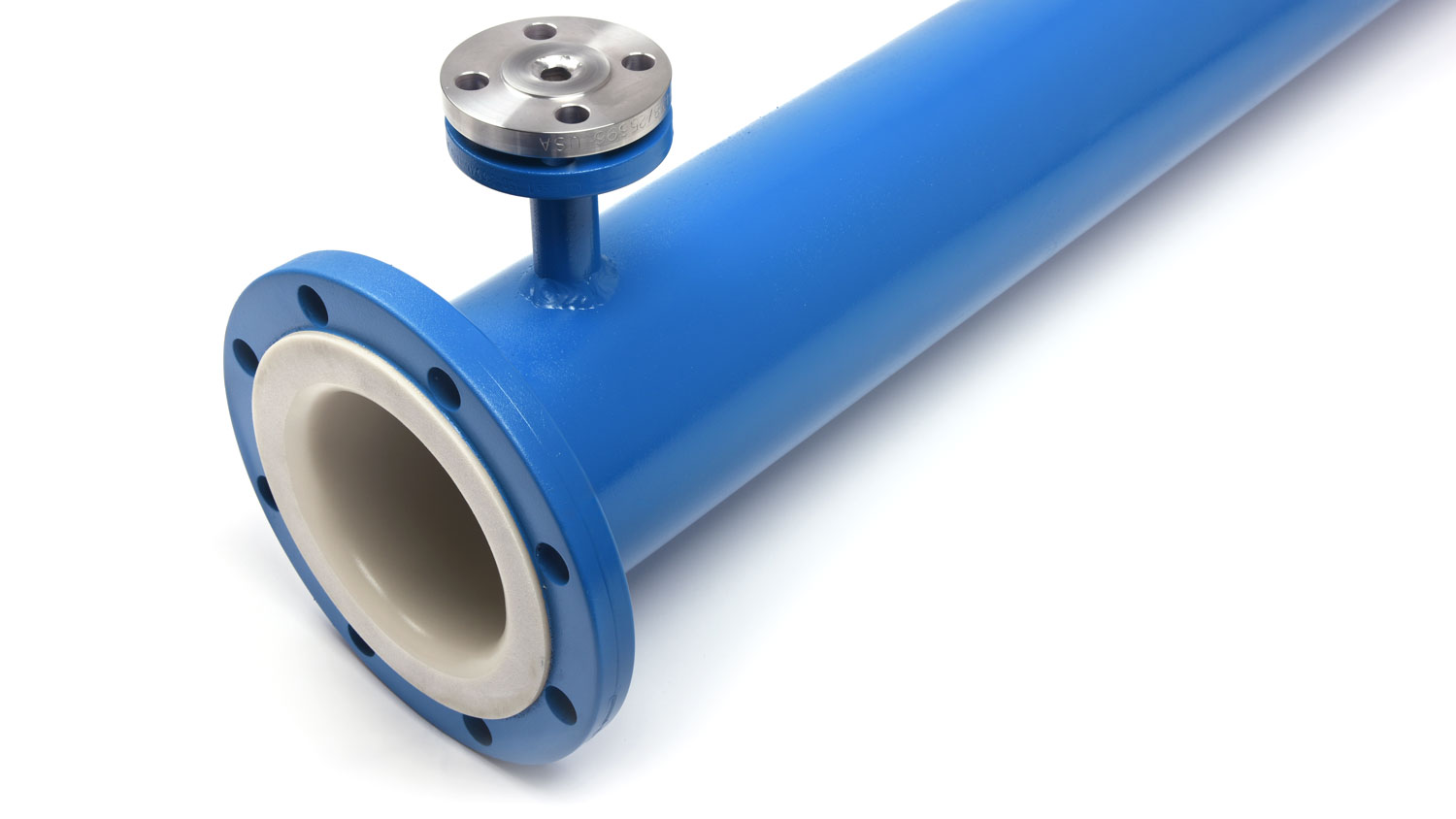

Kynar®-lined static mixer with flanged chemical injection port and optional centerline injection sparger

Chemical Injection Port

Chemical injection ports allow the additive stream to be injected directly into the static mixer unit. If more than one chemical injection port is necessary, multiple ports can be configured in a linear or radial fashion. Injection ports are available in multiple configurations to suit your application.

Configurations

  • Solid Kynar mixer with FNPT threaded port

    Solid Kynar - FNPT

    Female NPT threaded ports are offered in multiple sizes. Use threaded ports to accept male NPT connectors or add a Koflo chemical injection quill. Offered on solid Kynar mixers only.

  • Lined Kynar mixer with flanged port

    Kynar Lined - Flanged

    Flanged ports are offered in multiple sizes on mixers 6" and larger. For lined mixers under 6", we recommend using an Instrument Tee . Mixer is shown with solid Hastelloy-C276 injection sparger (optional).

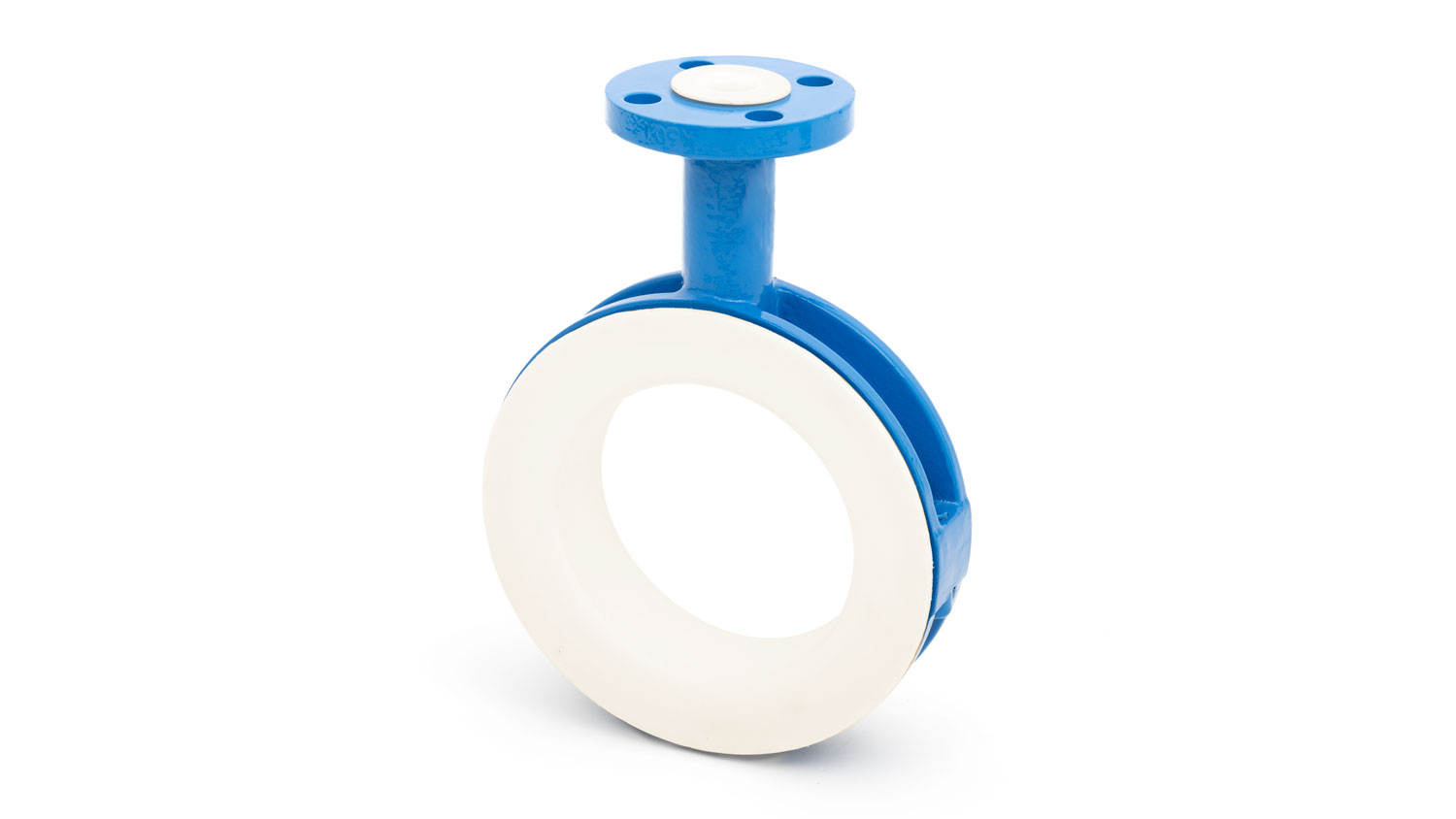

Kynar®-lined flanged instrument tee

Instrument Tee - Kynar Lined

Instrument tees can be placed upstream of your Koflo static mixer and mounted between two flange faces to introduce additive streams to the main process flow. Kynar lined instrument tees feature a flanged port assembly (carbon steel as standard) with the same heavy duty Kynar lining utilized in Koflo Kynar lined mixers. Tees and can be paired with a Koflo centerline injection sparger  for safe and effective delivery of chemicals into the center of the main stream.

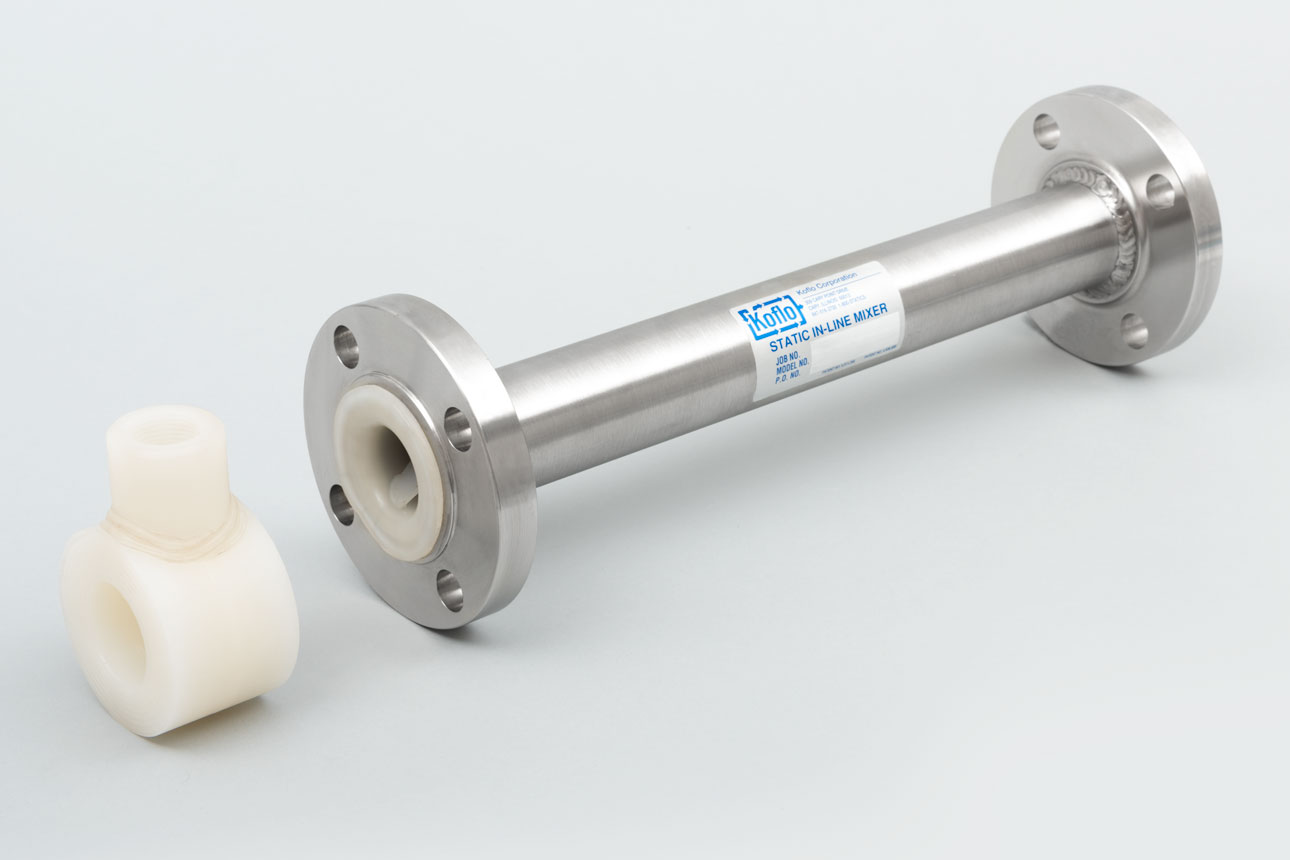

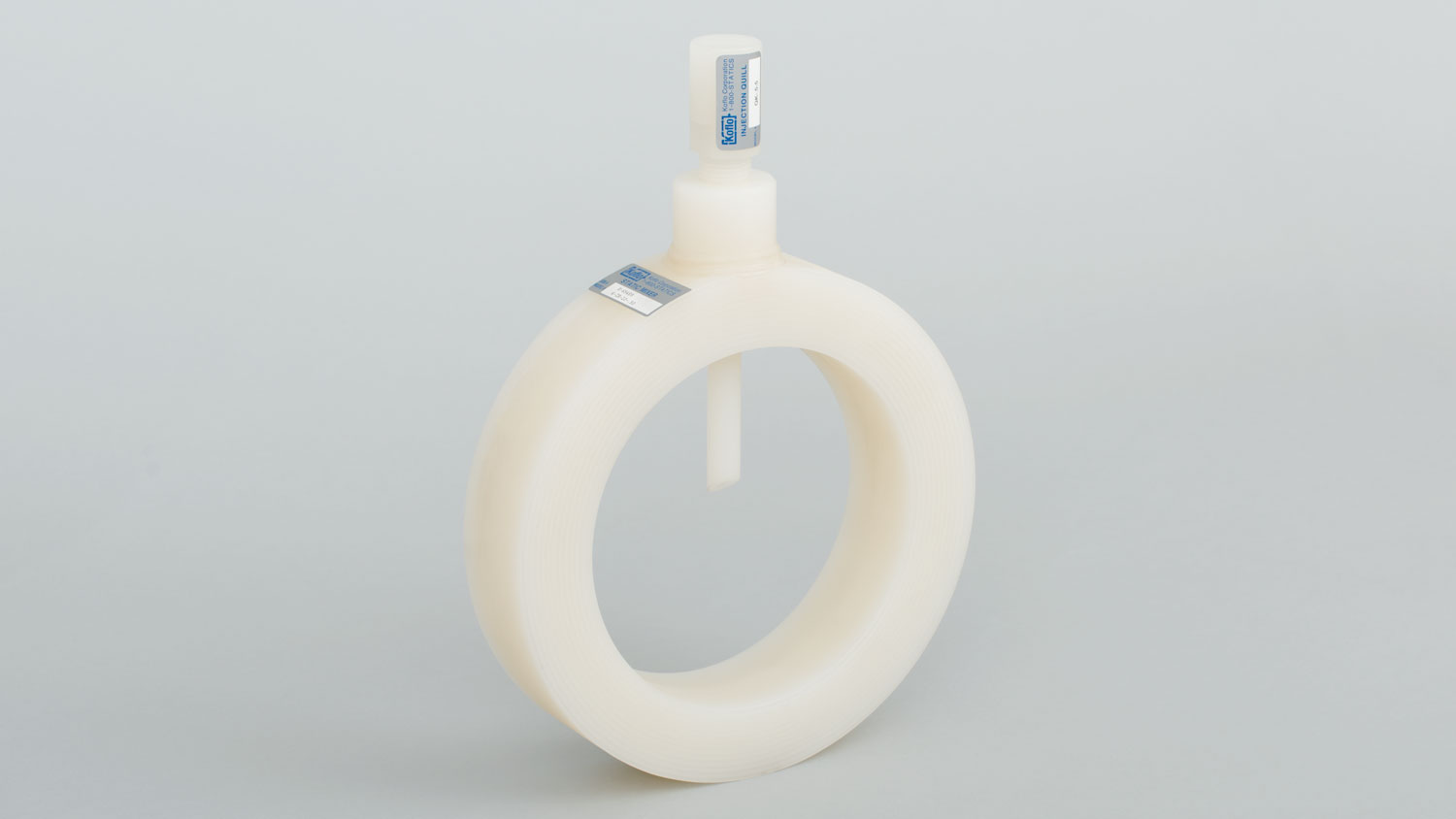

Solid Kynar® injection ring

Injection Ring - Solid Kynar

Injection rings can be placed upstream of your Koflo static mixer and mounted between two flange faces to introduce additive streams to the main process flow. Solid Kynar injection tees are machined from solid Kynar billet and can be paired with Koflo's Kynar line of chemical injection quills (shown above) to safely and effectively introduce corrosive chemicals into the main stream.

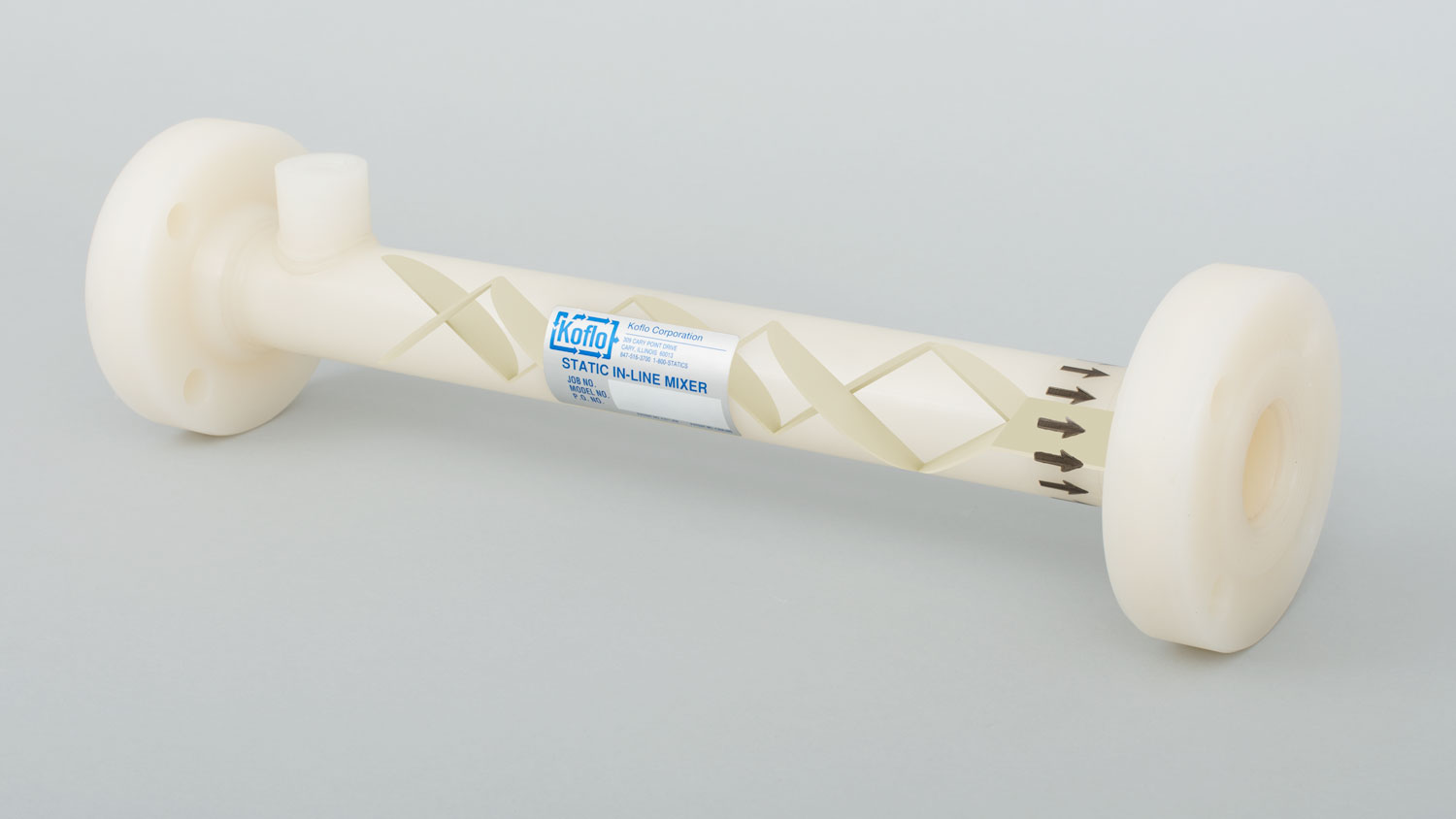

Solid Kynar® static mixer with flow straightening vane

Flow Straightening Vane

Flow straightening vanes can be added to the downstream end of any Kynar static mixer mixer to significantly reduce the flow rotation caused during the mixing process. Flow straightening vanes have a negligible impact on pressure loss.

Please Note: Koflo offers many additional mixer options that may not be listed above. Please Contact Us to discuss other options or requirements for your specific application.
