PPT Series Disposable Mixers
Stock Static Mixers
PPT series mixers are an economical solution for in-line mixing. Ideal for mixing applications involving short-life fluids such as adhesives, epoxies, or coatings, PPT series mixers feature helical-style mixing elements which allow for pressure drop efficient mixing of low, medium, and high viscosity fluids across all flow regimes. Chemically resistant polyacetal elements and polypropylene tubing resist many chemical solutions. With multiple element configurations available in each size, there is a PPT series mixer for nearly all small-scale disposable processes.
REQUEST A QUOTETypical Applications
- Low, Medium and High viscosity blending
- Glue / paint / epoxy
- Colorants and dyes
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above. For questions regarding a disposable mixer to suit your specific application, feel free to Contact Us.
Features
- Housing: Polypropylene Tubing
- Elements: Helical Style Polyacetal
- End Connections: Plain End and Brass Male NPT

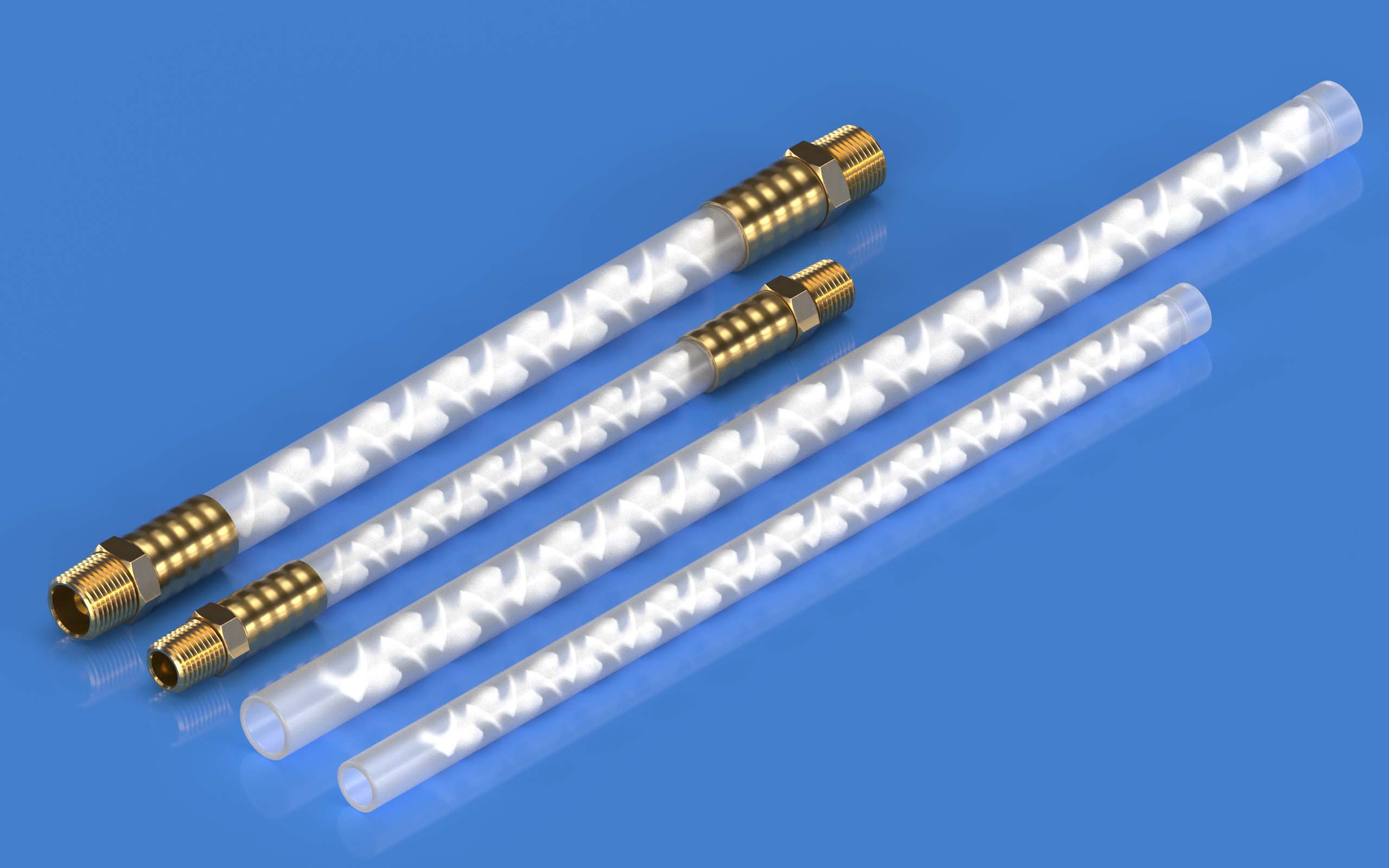

PPT Series mixers are available in both plain end and brass NPT threaded end configurations. Adapt plain end mixers to your process using standard, commercially-available tube compression fittings (not included).
Technical
Maximum Operating Temperature: 170°F
Temperature De-Rating
Operating pressures de-rate based on service temperature. Multiply the maximum operating pressure for your model by the correction factor in the following table to determine the maximum working pressure at your process temperature.
| Temperature (°F) | Factor |
|---|---|
| 70 | 1.00 |
| 80 | 0.97 |
| 90 | 0.91 |
| 100 | 0.85 |
| 110 | 0.77 |
| 120 | 0.75 |
| 130 | 0.68 |
| 140 | 0.65 |
| 150 | 0.57 |
| 160 | 0.45 |
| 170 | 0.26 |
| 180 | 0.15 |
Technical Specifications
| Model Code | End Connections | Pipe OD | Pipe ID | # of Elements | Length | Maximum Operating Pressure (PSIG @ 70°F) |
|---|---|---|---|---|---|---|
| PPT-.25-12-P | Plain | 0.25 | 0.125 | 12 | 2.25 | 490 |
| PPT-.25-24-P | Plain | 0.25 | 0.125 | 24 | 3.75 | 490 |
| PPT-.25-36-P | Plain | 0.25 | 0.125 | 36 | 5.25 | 490 |
| PPT-.375-12-P | Plain | 0.375 | 0.250 | 12 | 3.75 | 327 |
| PPT-.375-24-P | Plain | 0.375 | 0.250 | 24 | 6.75 | 327 |
| PPT-.375-36-P | Plain | 0.375 | 0.250 | 36 | 10.00 | 327 |
| PPT-.375-48-P | Plain | 0.375 | 0.250 | 48 | 13.00 | 327 |
| PPT-.5-12-P | Plain | 0.5 | 0.375 | 12 | 5.50 | 245 |
| PPT-.5-24-P | Plain | 0.5 | 0.375 | 24 | 10.50 | 245 |
| PPT-.5-36-P | Plain | 0.5 | 0.375 | 36 | 15.00 | 245 |
| PPT-.625-12-P | Plain | 0.625 | 0.500 | 12 | 7.25 | 196 |
| PPT-.625-24-P | Plain | 0.625 | 0.500 | 24 | 13.50 | 196 |
| PPT-.625-36-P | Plain | 0.625 | 0.500 | 36 | 19.50 | 196 |
| PPT-.5-12-.25 | 0.25" NPT | 0.5 | 0.375 | 12 | 8.50 | 245 |
| PPT-.5-24-.25 | 0.25" NPT | 0.5 | 0.375 | 24 | 13.00 | 245 |
| PPT-.5-36-.25 | 0.25" NPT | 0.5 | 0.375 | 36 | 17.50 | 245 |
| PPT-.625-12-.375 | 0.375" NPT | 0.625 | 0.500 | 12 | 10.00 | 196 |
| PPT-.625-24-.375 | 0.375" NPT | 0.625 | 0.500 | 24 | 16.00 | 196 |
| PPT-.625-36-.375 | 0.375" NPT | 0.625 | 0.500 | 36 | 22.00 | 196 |
| PPT-.625-12-.5 | 0.5" NPT | 0.625 | 0.500 | 12 | 10.40 | 196 |
| PPT-.625-24-.5 | 0.5" NPT | 0.625 | 0.500 | 24 | 16.40 | 196 |
| PPT-.625-36-.5 | 0.5" NPT | 0.625 | 0.500 | 36 | 22.40 | 196 |
