Stratos™ Static Tube Mixer

Stock Static Mixers

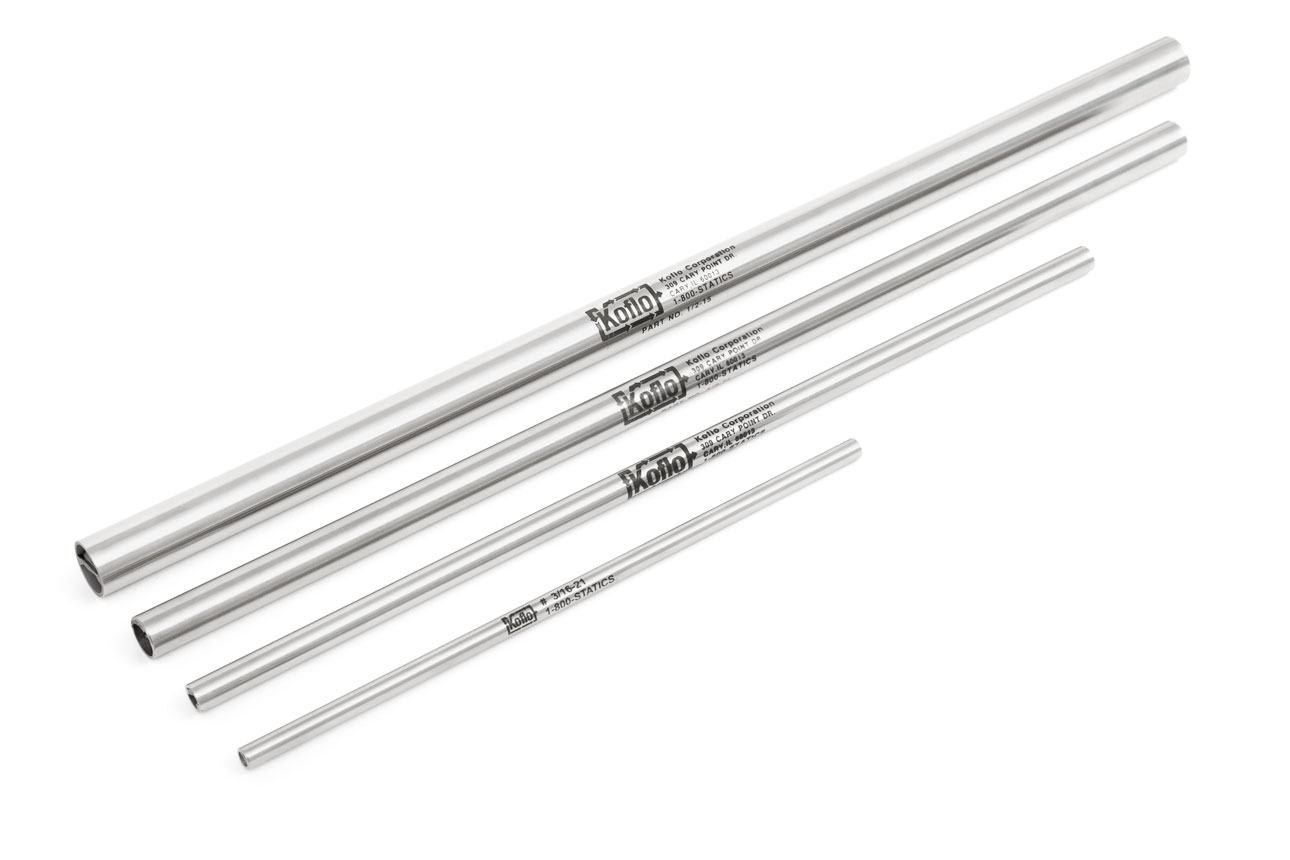

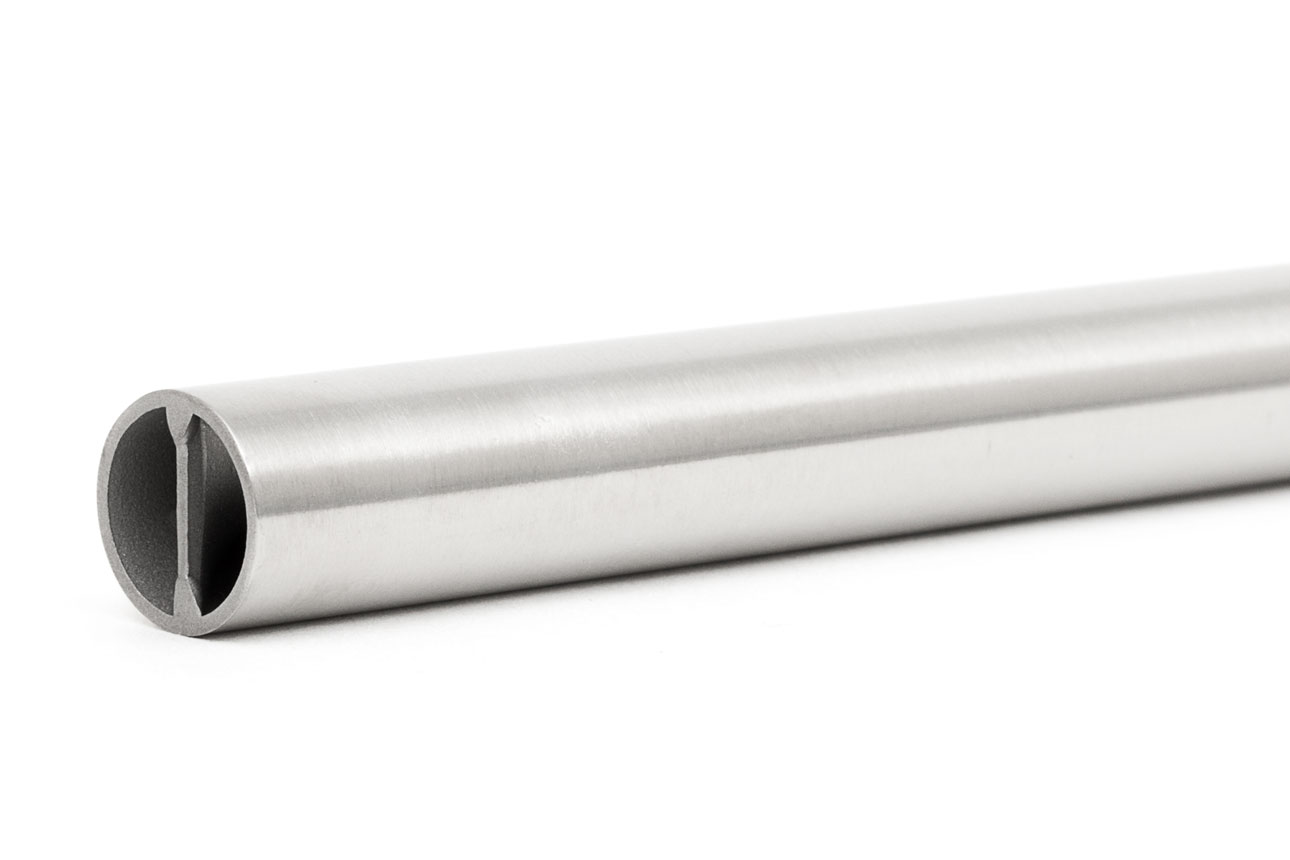

The Koflo Stratos Static Tube Mixer consists of a series of fixed alternating right and left hand helical mixing elements designed for mixing light viscosity to high viscosity components. Both the elements and housing are constructed of 316L SS for superior performance. Mixing elements are fixed by either 316L stainless steel TIG welds (1/4", 3/8", 1/2" tube mixers) or a silver braze (3/16" tube mixer only).

Stratos Static Tube Mixers come in a variety of sizes and lengths, depending on viscosity and whether the blended products are of similar or dissimilar physical characteristics.

REQUEST A QUOTE

Typical Applications

  • Labratory scale mixing
  • Pilot plants
  • Epoxy blending
  • Gas blending

Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above. For questions regarding your specific application, feel free to Contact Us.

Features

  • Housing: 316/L Stainless Steel
  • Elements: 316/L Stainless Steel
  • End Connections: Plain (for use with compression fittings, not supplied)
  • Small-scale design allows for homogeneous blending in lab-scale applications
  • Helical design elements optimal performance with viscous, laminar flows such as epoxy resins

Custom Stainless / Alloy

Koflo offers custom-designed stainless steel/metal alloy mixers with a number of available options to suit your application. Click below for Custom Stainless Steel/Metal alloy options and information.

Technical Specifications

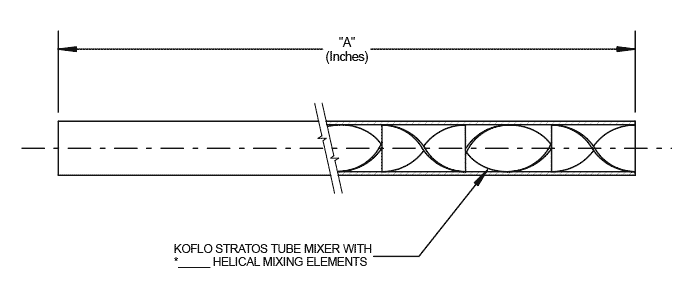

Stratos™ Part No. Tube O.D. Tube I.D. Length Weight Max. Working
Pressure
(PSI @ 75°F)
Number of
Elements
3/16-17 .187 .132 4-7/8" .02 lb 5000 17
3/16-21 .187 .132 6" .03 lb 5000 21
3/16-27 .187 .132 7-1/2" .03 lb 5000 27
1/4-21 .250 .194 7" .05 lb 4200 21
1/4-27 .250 .194 9-1/4" .06 lb 4200 27
1/4-34 .250 .194 11-1/2" .07 lb 4200 34
3/8-21 .375 .319 11" .12 lb 2800 21
3/8-27 .375 .319 14" .15 lb 2800 27
3/8-32 .375 .319 17" .18 lb 2800 32
1/2-15 .500 .430 11-7/8" .21 lb 2100 15
1/2-21 .500 .430 16-3/8" .29 lb 2100 21
1/2-32 .500 .430 24-3/4" .44 lb 2100 32
