Clear PVC Static Mixer
Stock Static Mixers

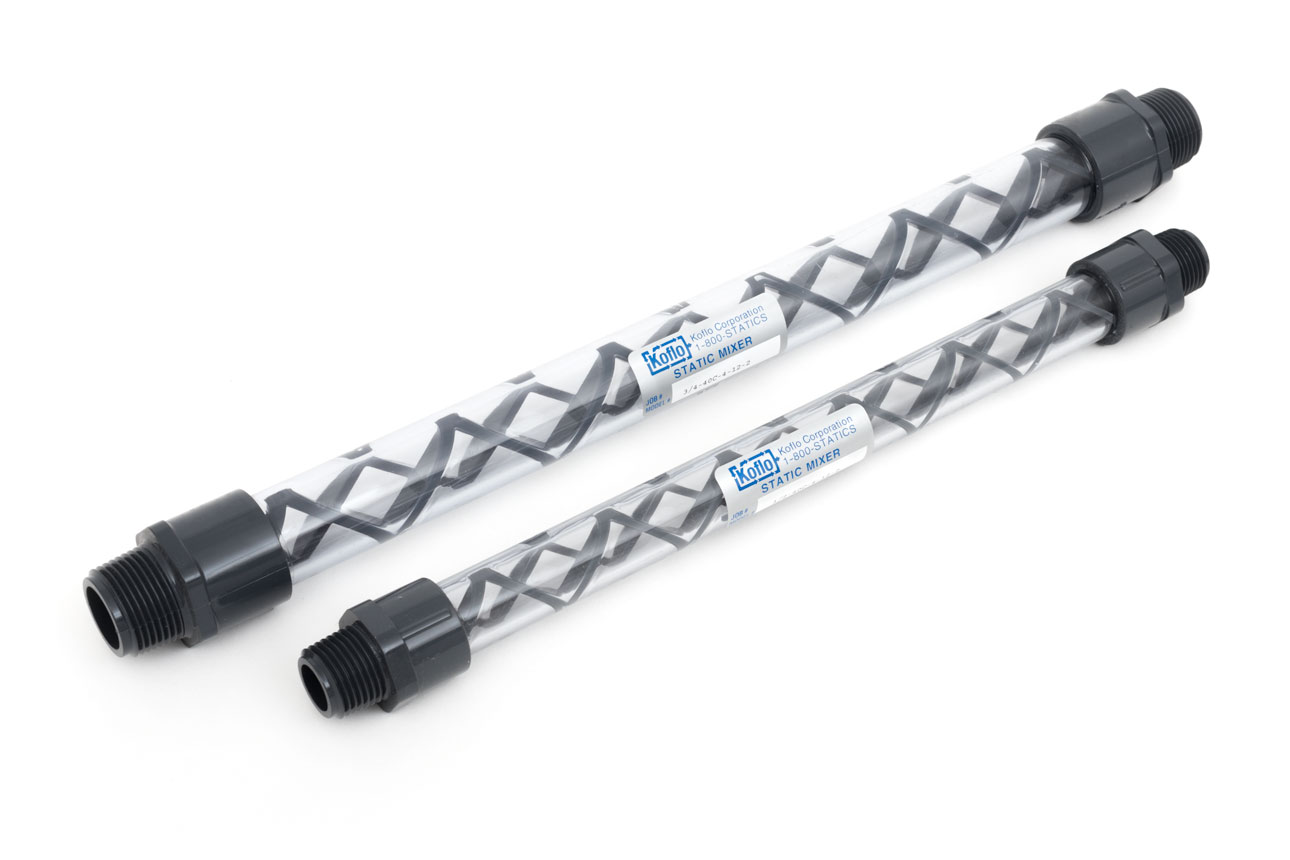

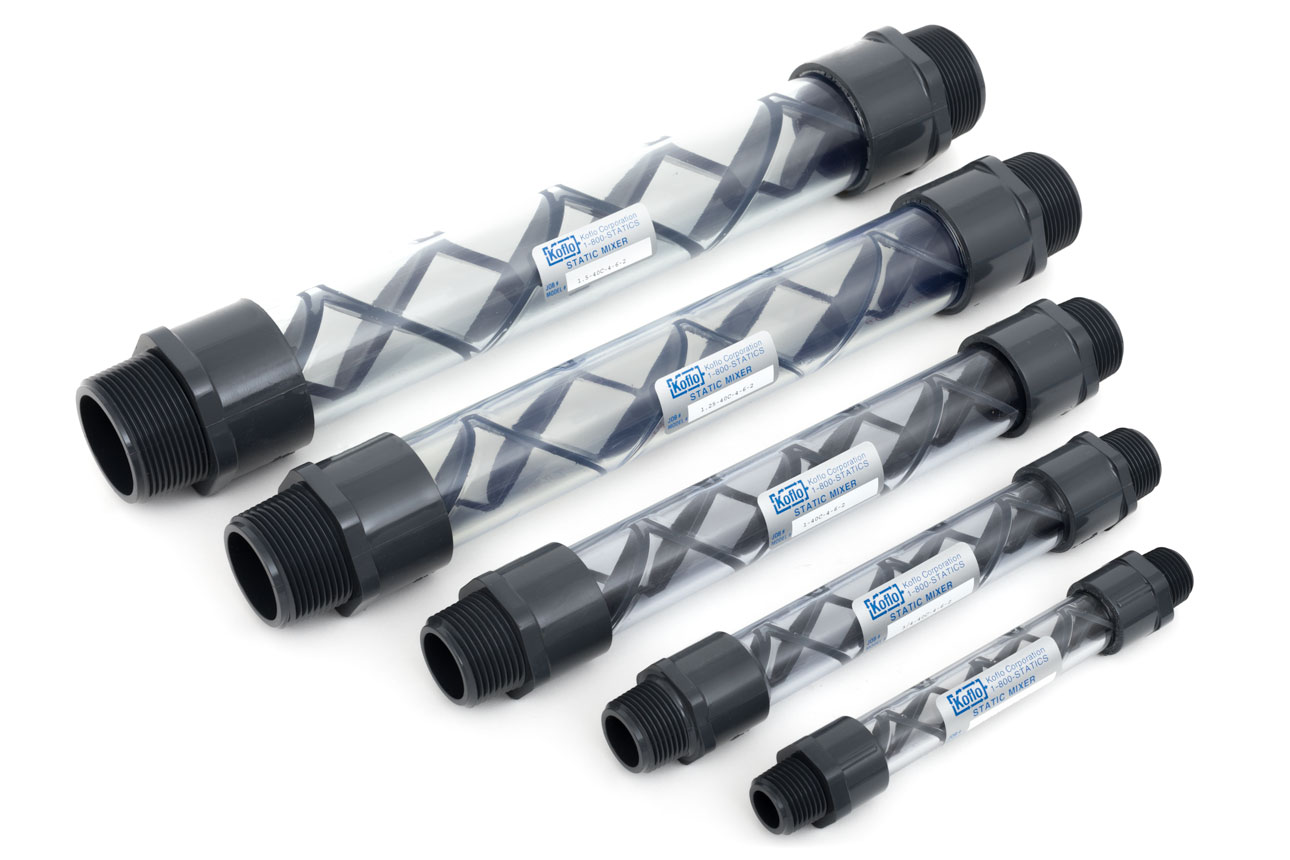

In response to a growing need for high-quality PVC static mixers at a lower price, Koflo developed the clear PVC static mixer series. Unlike most other static mixers, Koflo clear PVC static mixers allow for a visual inspection of the mixing process. Clear PVC Static mixers are available in standard 6 element and 12 element configurations. Additionally, all PVC static mixers are edge sealed to the inside of the housing for the twofold benefit of improved mixing efficiency and increased structural rigidity. All stock clear motionless mixers come equipped with male NPT threaded ends and are in stock for immediate delivery.
All in-stock clear PVC static mixers are now certified to NSF 61.
REQUEST A QUOTETypical Applications
- Admixing of water treatment chemicals
- pH control
- Chlorination and ozonation
- Process control sampling
Clear motionless mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above. For questions regarding your specific application, feel free to Contact Us.
Features

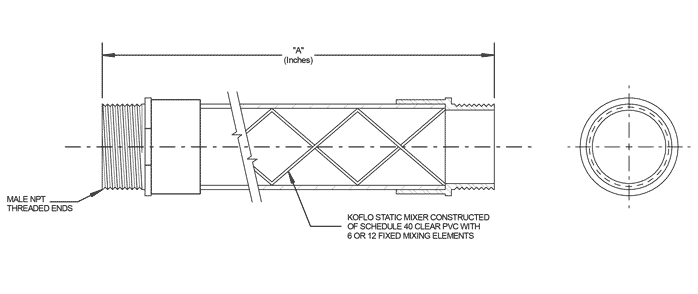

- Housing: Schedule 40 Clear PVC
- Elements: Koflo Blade™ Style PVC
- End Connections: Male NPT (Threaded Ends)
- Clear PVC pipe allows visual inspection of mixing process
- PVC construction provides a durable and cost-effective mixing option
- Third party certified to NSF / ANSI 61
Custom PVC
Koflo offers custom-designed clear motionless mixers with numerous available options to suit your application. Click below for Custom PVC options and information.
Technical Specifications
| Model Number | Pipe Dia. MNPT Ends |
Number of Elements |

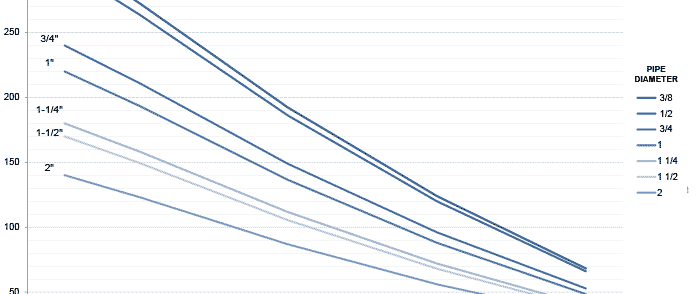

Length | Weight | Max. Working Pressure (PSI @ 75°F) |
Typical Flow (GPM) |
Pressure Loss (PSI) |
|---|---|---|---|---|---|---|---|
| 3/8-40C-4-6-2 | 3/8" | 6 | 6-1/2" | 1.3 oz | 310 | .4 - 3 | .25 - 11.25 |
| 3/8-40C-4-12-2 | 3/8" | 12 | 11" | 2.1 oz | 310 | .4 - 3 | .50 - 22.5 |
| 1/2-40C-4-6-2 | 1/2" | 6 | 7" | 2.1 oz | 300 | .65 - 5 | .25 - 10 |
| 1/2-40C-4-12-2 | 1/2" | 12 | 12" | 3.3 oz | 300 | .65 - 5 | .50 - 20 |
| 3/4-40C-4-6-2 | 3/4" | 6 | 9" | 3.7 oz | 240 | 1.5 - 12 | .25 - 11 |
| 3/4-40C-4-12-2 | 3/4" | 12 | 15" | 5.8 oz | 240 | 1.5 - 12 | .50 - 22 |
| 1-40C-4-6-2 | 1" | 6 | 11" | 6.5 oz | 220 | 2.5 - 16 | .30 - 11.75 |
| 1-40C-4-12-2 | 1" | 12 | 18" | 9.9 oz | 220 | 2.5 - 16 | .60 - 23.5 |
| 1.25-40C-4-6-2 | 1-1/4" | 6 | 14" | 12.2 oz | 180 | 4 - 32 | .25 - 13.5 |
| 1.25-40C-4-12-2 | 1-1/4" | 12 | 25" | 18.3 oz | 180 | 4 - 32 | .50 - 27 |
| 1.5-40C-4-6-2 | 1-1/2" | 6 | 15" | 14.8 oz | 170 | 6 - 40 | .25 - 12.25 |
| 1.5-40C-4-12-2 | 1-1/2" | 12 | 28" | 25.4 oz | 170 | 6 - 40 | .50 - 24.5 |
| 2-40C-4-6-2 | 2" | 6 | 19" | 25 oz | 140 | 9 - 60 | .25 - 9.25 |
| 2-40C-4-12-2 | 2" | 12 | 35" | 43 oz | 140 | 9 - 60 | .50 - 18.5 |
